System DECTRO

Our solution, system "DECTRO"

System "DECTRO" is a device of high voltage overhead power lines. Its for any kind of vehicle which have a metallic part that can touch accidentally a high voltage electric line. Around a line, the device start a visual and audible alarm and block the boom movement in stop it. This one will are unblock by the use people, after he found line (DANGER) and with his responsability. Sensitivity of the device was adapted to a detection of the overhead electric lines 20000 volts, in indicate a presence of a high voltage line in vehicle environement.

Mean of prevention

Used like a mean of prevention, the device prevent use people that a high voltage overhead electric line is near, but it never allow dangerous interventions around electric lines. It doesn't shield user to the rule currently.
(décret 2008-244 du 7 Mars 2008 - obligations du code du travail - article R4534-108).

Limitated uses

A partial or total mitigation of sensor sensitivity is remarked:                                               - in vertical of a high voltage line in horizontal layer.                             - according to environement of antenna: tree or branches,metallic parts which hidde partially the antenna of line.                   - in hard climatics conditions: snow, frost...                                             SYSTEME DOESN'T DETECT 220v-380v AND DOESN'T FOUND PRESENCE OF CONTINUOUS TENSIONS. Example: 1500 volts (DC) on some power lines like SNCF and 750 volts (DC) for tramway lines that device DECTRO doesn't detect.

Technical specifications

- Detection of high voltage overhead electric lines (20000 volts and more).
- Conformity to specifications of electromagnetic compatibility EMC.
- Device protected against radiophones disruptions.
- Supplying : 24 VDC or 12 VDC (connection in the battery of vehicle).
- Consumption and clutters limited (embedded mode).
- Watertight of outside boxes: IP66 - IP67 - not outside connectic.
- Range for extreme temperature of working: -20°C à + 70°C.
- Easiness to use for an operator
- Automatic mode for starting and power cut
- Autotest of device for every switch on
- Parametering of software for sensitivity of ldevice at installation.
- Application of "positive safety" concept.
- The device is leaded at installation, with a possibility to unblock movement if there is a breakdown by a key according to a define procedure.

Options

-Signal of piloting from a flashing light                                                                                   -Wireless movement of an audible signal "Alarm"                                                                     -For specifics applications: possibility to add one or several antennas.   DECTRO is a registered trademark of JMJ Technologie

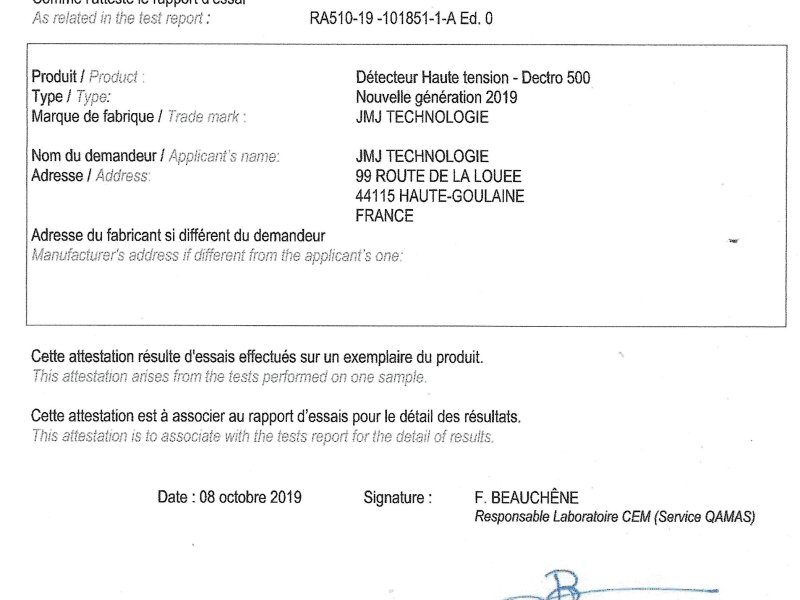

Normatives references: CE conformity                                       ECE R10 Rev 5/A1 - 2019

This new generation from the range of devices DECTRO 500 is in accordance with EMC norms (electromagnetic compatibility) -regulation ECE-R10-REV05/A1 from economical commission for l’Europe – applicables to electrics and electronics equipments in the automotive environement.
