02 40 06 20 06
DECTRO 500-EPN
Device of detection - proximity platform version
Detection of a proximity area. Device of high voltage overhead electric lines
Independant system but linked with volumetric version DECTRO 500-EPV. Material of detection for an area of proximity on a distance from 10 to 12m far an overhead electric line 20KV AC.

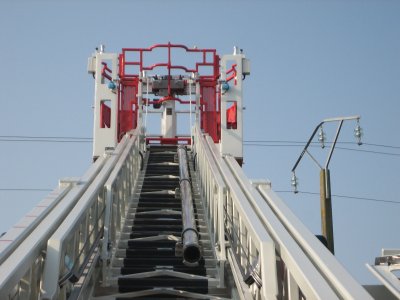

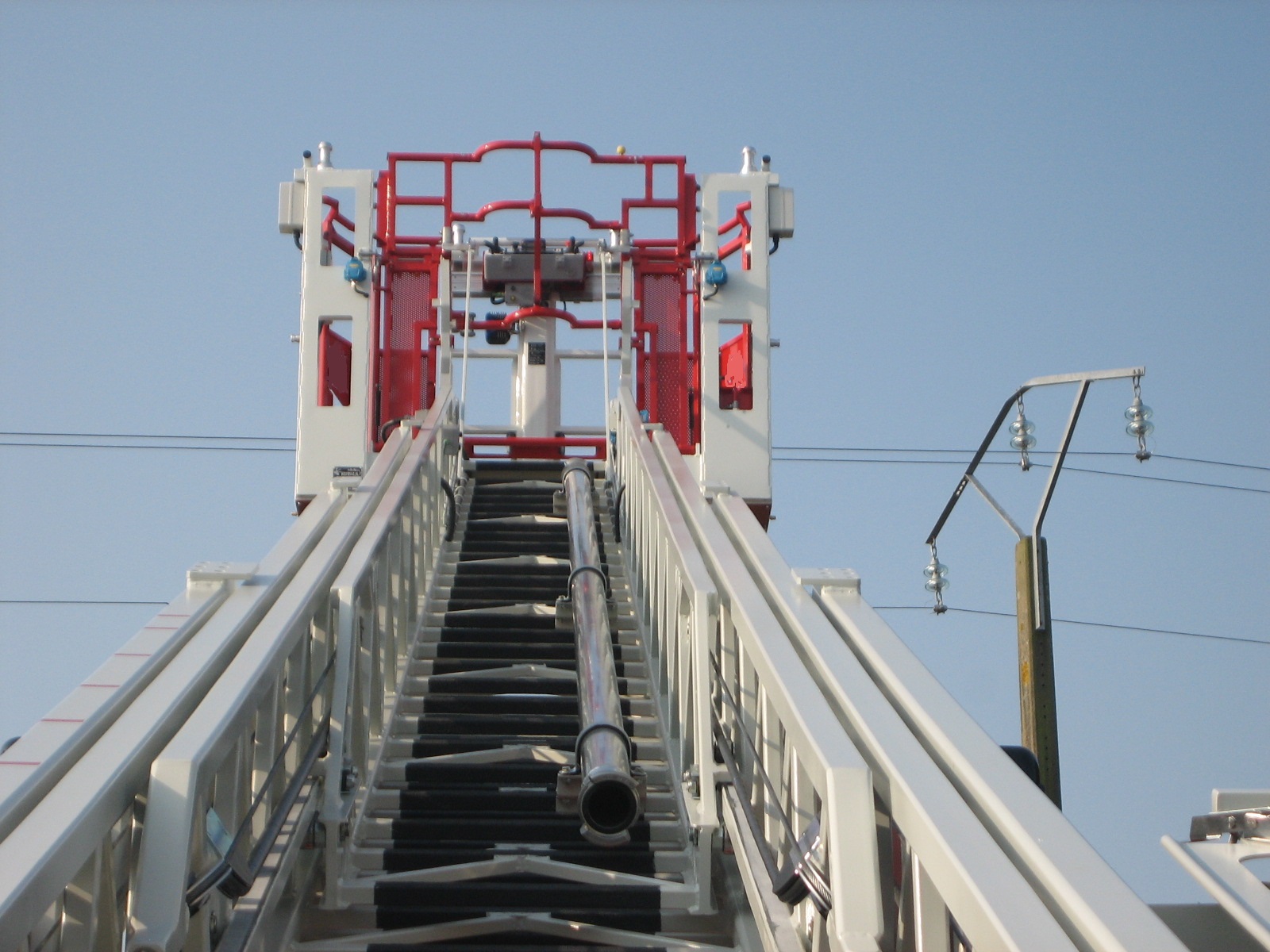

Antennas of detection for high voltage overhead electric lines (2 or 3 according to the kind of platform)
With littles dimensions,they are positionned on the both sides of platform.

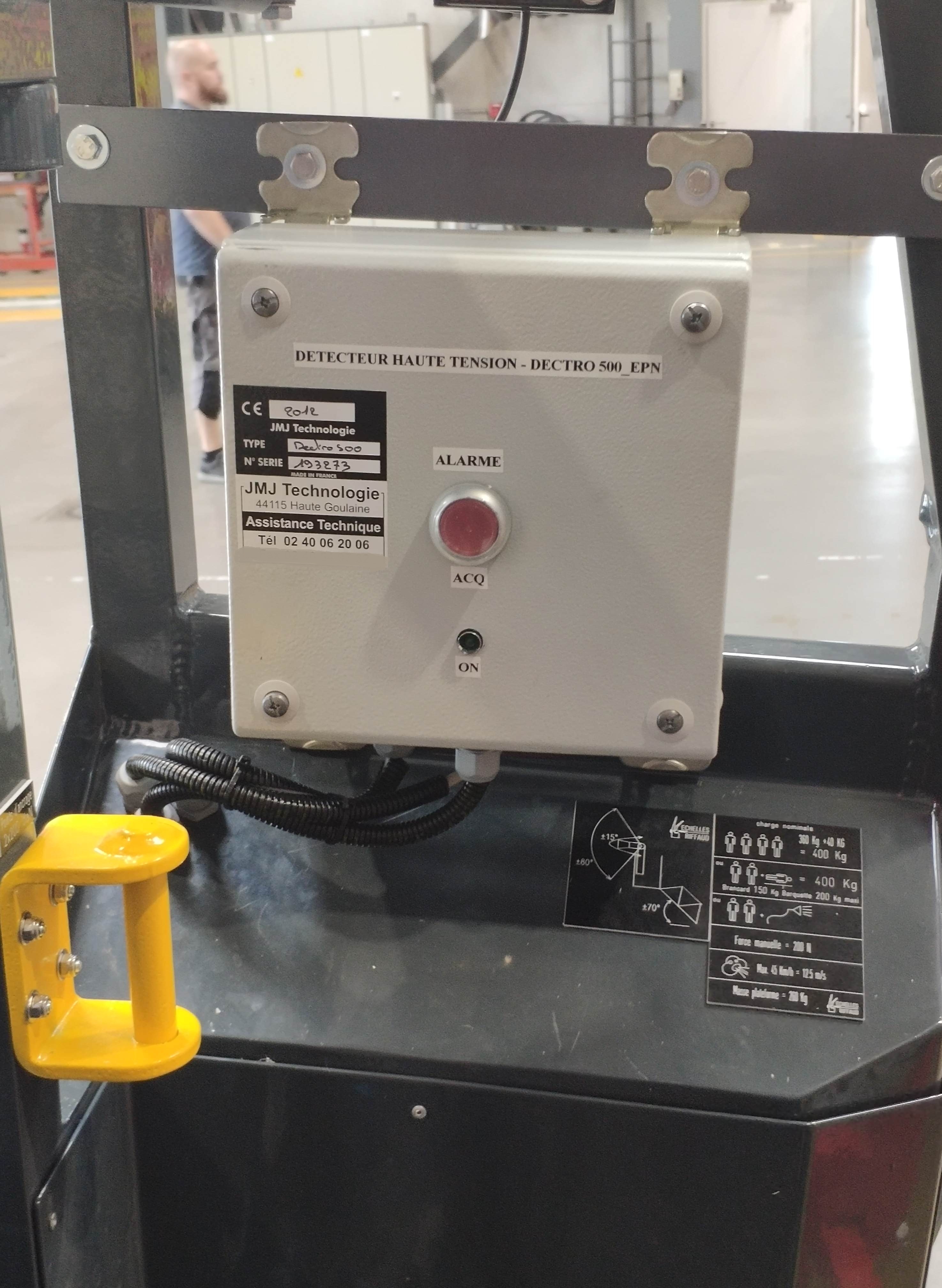

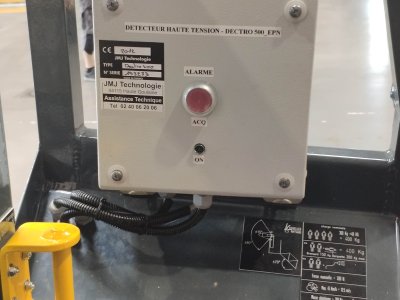

Central processing unit in platform
Supplyied by grip of movement starting, with a beep alarm activated when there is a presence of Danger.
2 lights "flash"
A movement in plateform of the light flash "Danger" and in option of light flash "alarm of vigilance" linked with a push button which permitte to acquit audible alarm by the operator according to predefined cycles.
Alarms are restarted automatically when there is again an exit and entrance in an electric field.
Remarks:
- There is no one blocking about the evolution of ladder in detection
- and, there is no disruptions about detection when the generator start (presence of 220 Volt AC in platform).
